UV Printing
UV printing - is a technology providing an especially accurate and clear image and the print itself is really resistant to brushing and scratching. UV Printing works do not take a lot of time and there is no special paint drying period or any time to wait prior to the actual use of the painted object.
Our specialists will use this technology to fulfill any of your ideas in transferring photographs, ornaments or texts on matt or glossy, hard and flexible surfaces - wallpapers, tents, stickers, glass, mirror, furniture panels, wood, metal, stone, various fabrics and similar surfaces.
Contact us and our specialists will provide you with an in-depth consultation regarding any question you have about UV printing or your order details.

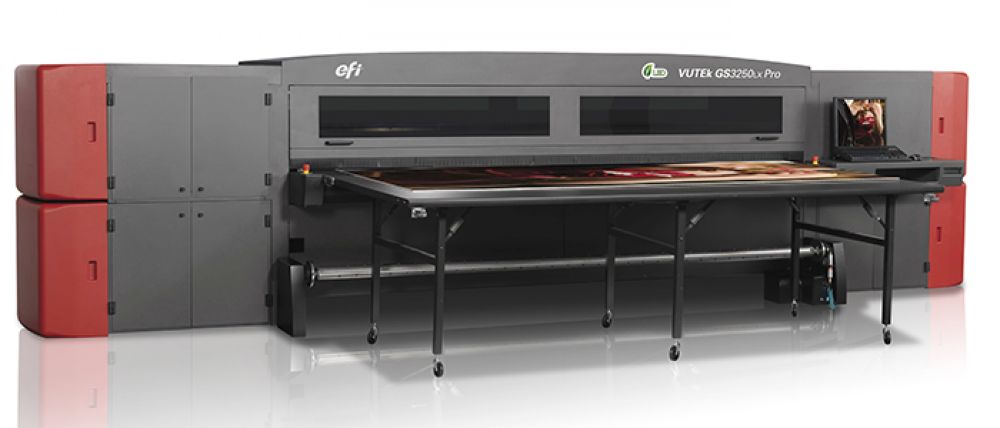

Our UV printer is an EFI - VUTEk GS3250LX Pro LED UV, offers superior productivity and has a LED light for paint drying and grayscale technologies.
Main specifications:
- Eight colors plus white, Fast-4 printing speed
- Color resolution of 600 and 1000 dpi
- Three layer printing with a white and black layer at the same time???
- LED technology ensuring the highest environment protection standards, BY WHICH – no solvents are used and no toxic substances are emitted?
- A 24/7 working schedule
- Fast printing change ? time
- A possibility to print on a 3,2 meter wide continuous or cut 5,08 cm thick plate
- Possibility to print on two 160 cm wide rolls
- An additionally mounted roll support system for heavy materials
- An additionally mounted table for small object printing
- Printing speeds: Fast-4: 203m2/hour. With eight colors plus white: 111m2/hour
efi_vutek_gs3250lxpro_data_sheet.pdf
USED SHEET MATERIALS
| # | Photo | Material name/thickness |
Sheet size |
Weight grams/sq.m. |
Safety standards |
|---|---|---|---|---|---|
| 1 |  |

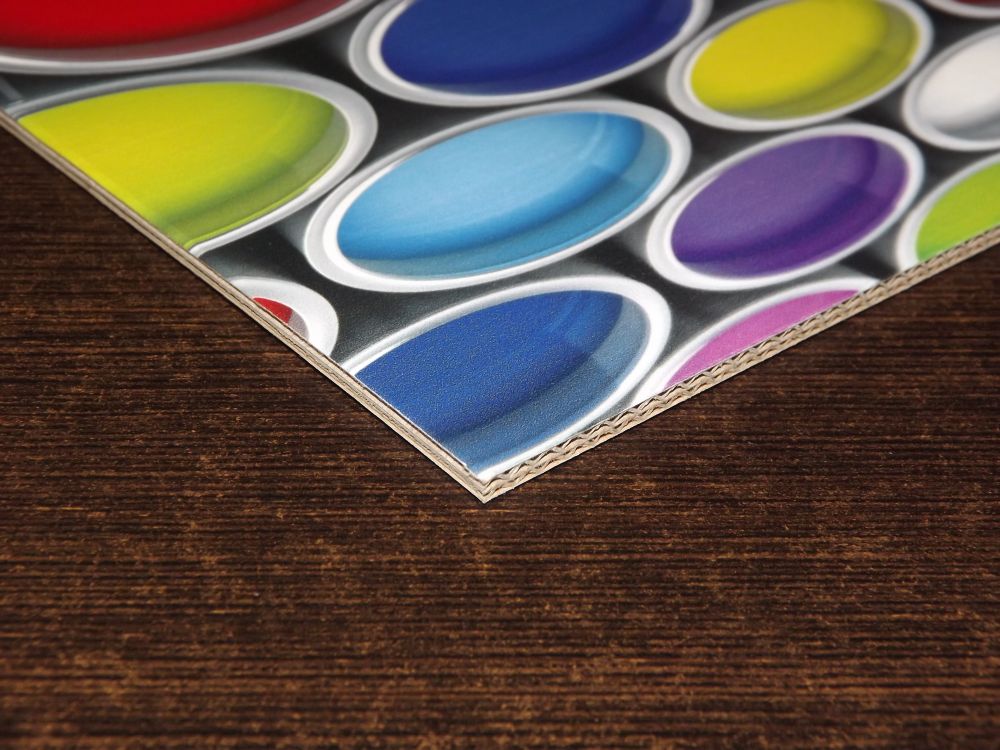

Corrugated cardboard EE / 3mm |
240x160 cm | 550 gsm | |
| 2 |  |
PVC Light / 1mm |
305x203 / 203x152 cm | 720 gsm | DIN 4102 with B1 |
| 3 | |
PVC Ultralight / 2 mm |
305x203 / 203x152 cm | 920 gsm | DIN 4102 with B1 |
| 4 | |
PVC Ultralight / 3 mm | 305x203 / 203x152 cm | 1380 gsm | DIN 4102 with B1 |
| 5 |  |
PVC Ultralight / 5 mm |
305x203 / 203x152 cm | 2300 gsm | DIN 4102 with B1 |
| 6 | |
PVC Ultralight / 10 mm | 305x203 / 203x152 cm | 4600 gsm | DIN 4102 with B1 |
| 7 |  |

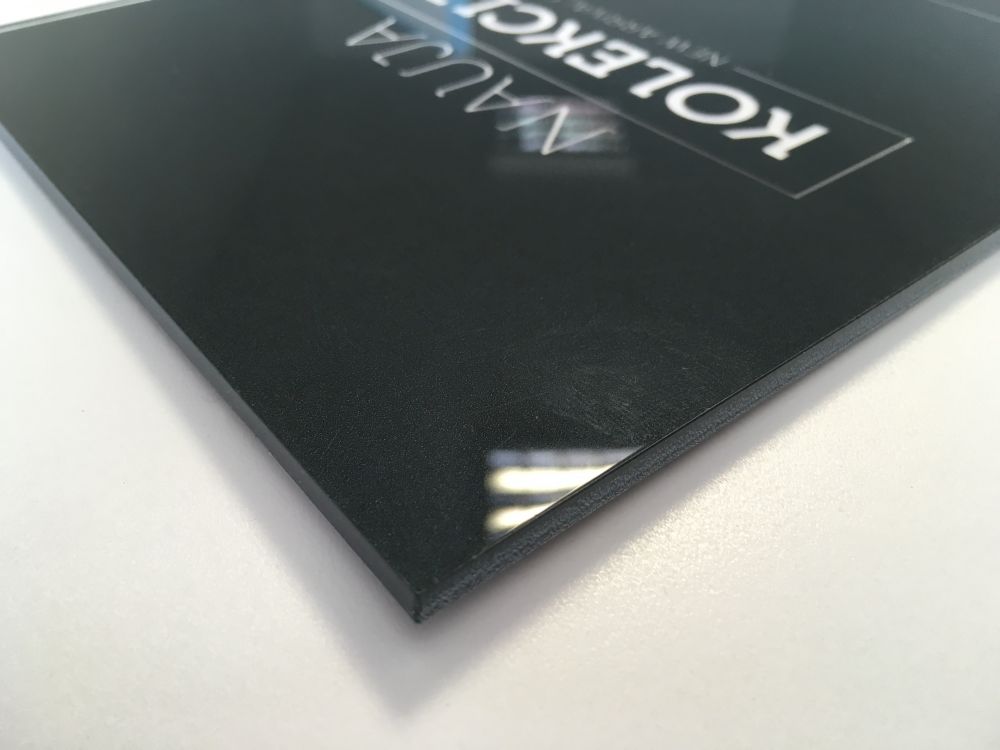

PVC Color (Black, red, yellow, green, blue) 3 mm | 305x203 / 203x152 cm | 1480 gsm | DIN 4102 with B1 |
| 8 |  |
PVC film, matt, white / 0.5 mm | 140x100 cm | 550 gsm | DIN 4102 with B1 |
| 9 |  |
PVC film, matt, clear, glossy / 0.5 mm | 140x100 cm | 550 gsm | DIN 4102 with B1 |
| 10 |  |
Axpet, Vivak PP white / 1mm | 205x125 cm | 1200 gsm | B-s1,d0 |
| 11 |  |
Axpet, Vivak PP clear / 1mm | 205x125 cm | 1200 gsm | B-s1,d0 |
| 12 |  |

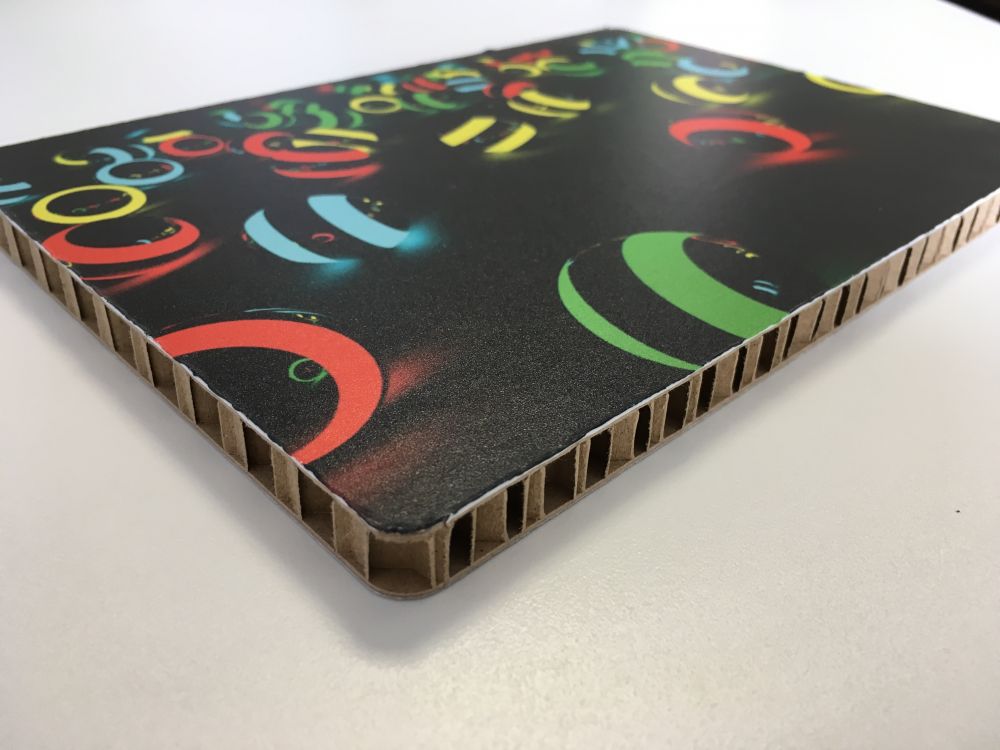

Re-board / 10 mm |
320x160 cm | 1700 gsm | C-s1,d0 |
| 13 |  |
Cardboard Katz Display / 1.2 mm | 122x244 cm | 1100 gsm | C-s1,d0 |
| 14 |  |
Plexiglas SAN / 2 mm |
305x203 / 203x152 cm | 2400 gsm | B2 |
| 15 |  |
Plexiglas SAN / 3 mm |
305x203 / 203x152 cm | 3600 gsm | B2 |
| 16 | |
Plexiglas SAN / 4 mm |
305x203 / 203x152 cm | 4800 gsm | B2 |
| 17 |  |
Milk-colored Plexiglas Opal / 3mm |
305x203 / 203x152 cm | 3600 gsm | B2 |
| 18 |  |
Stadur Print / 10 mm |
305x203 / 203x152 cm | 1450 gsm | DIN 4102 with B1 |
| 19 |  |
Coplast / 10 mm |
305x150 cm | 1700 gsm | DIN 4102 with B1 |
| 20 |  |
LightBond Digital / 3 mm |
305x150 cm | 3700 gsm | B-s1-d0 |
| 21 |  |

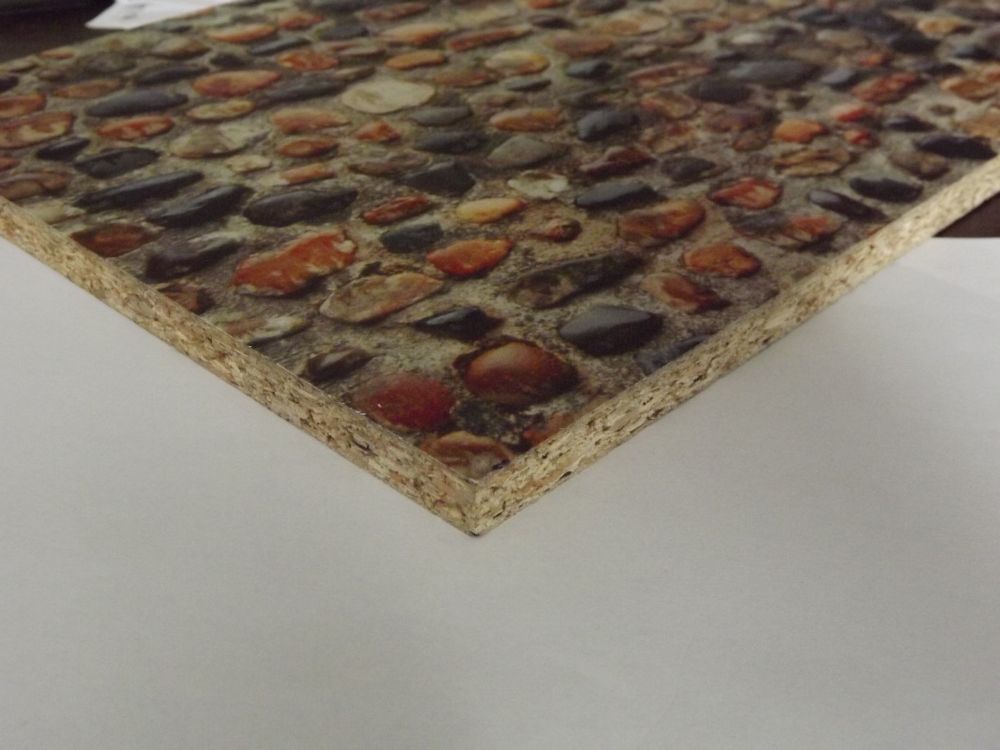

Furniture plate / 18 mm |
280x207 cm | 12820 gsm | B-s1-d0 |
| 22 |  |
Textile Fine art Canvas |
103 / 310 cm | 300 gsm | DIN 4102 with B1 |
ROLL MATERIAL
| # | Photo | Name of roll material |
Roll width |
Weight grams/sq.m. |
Safety standards |
|---|---|---|---|---|---|
| 1 |  |
Corrugated cardboard E single face |
152 cm | 200 gsm | |
| 3 |  |
Textile Soft Image Lightbox |
103 / 310 cm | 220 gsm | DIN 4102 with B1 |
| 4 |  |
Textile Artist Heavy | 155 / 310 cm | 350 gsm | DIN 4102 with B1 |
| 5 |  |
Textile Poplin plus |
155 cm | 190 gsm | DIN 4102 with B1 |
| 6 |  |
Wallpaper Frosted | 107 cm | 230 gsm | |
| 7 |  |
Wallpaper Rock | 107 cm | 238 gsm | |
| 8 |  |
Wallpaper Grid | 107 cm | 229 gsm | |
| 9 |  |
Wallpaper Silver | 107 cm | 227 gsm | |
| 10 |  |

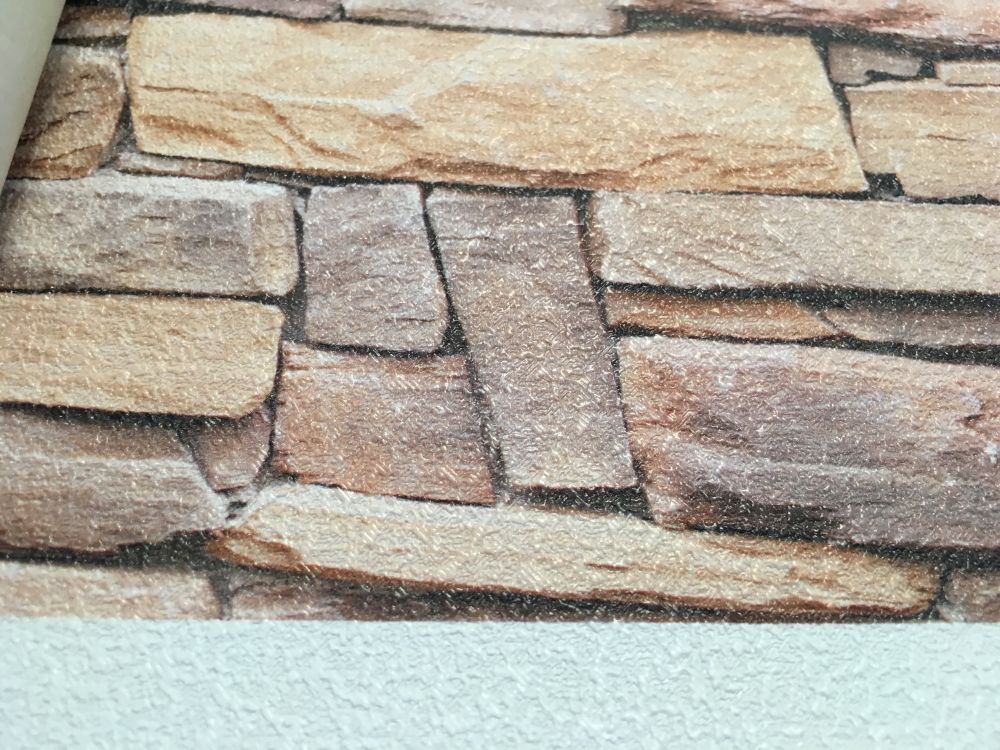

Stone Grain | 107 cm | 221 gsm | |
| 11 |  |
Wallpaper Glitter | 107 cm | 259 gsm | |
| 12 |  |
Black chalkboard film | 100 cm | 120 gsm | |
| 13 |  |

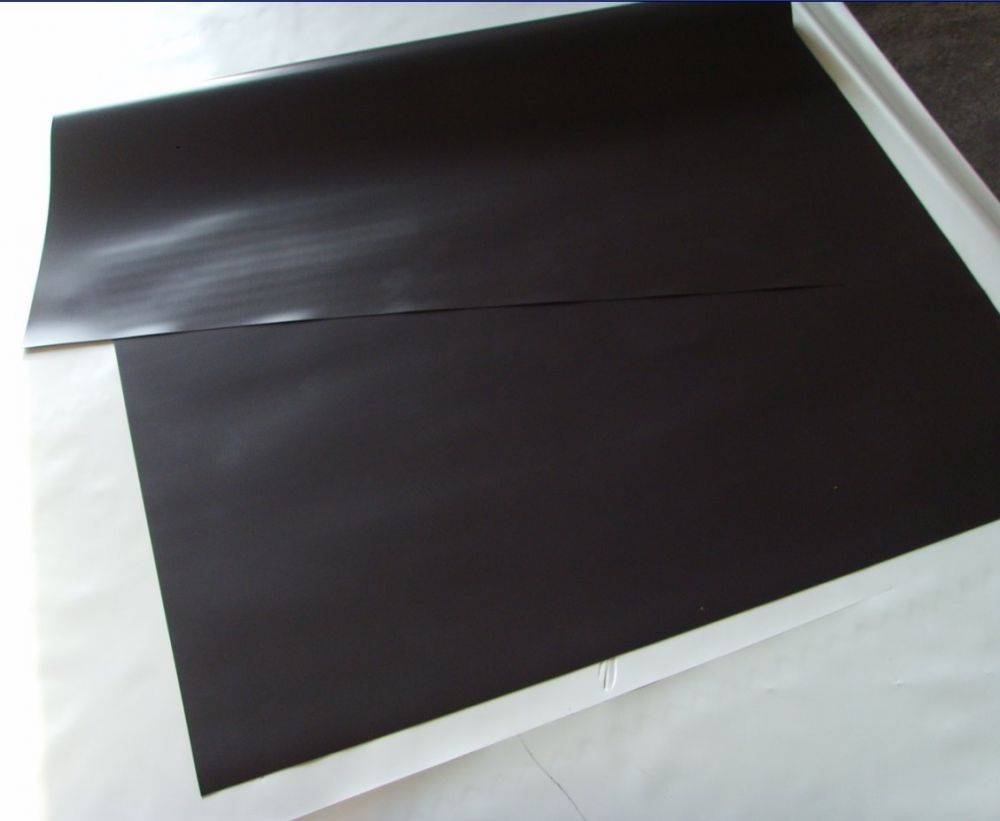

Magnetic film | 100 cm | 600 gsm | |
| 14 |  |

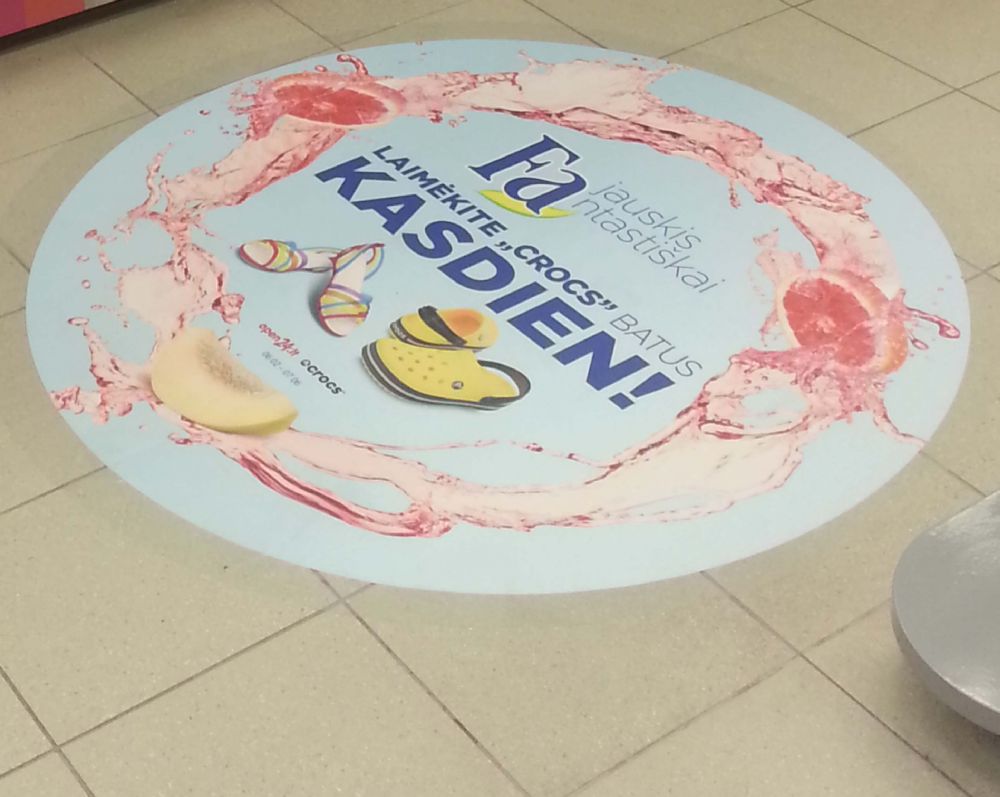

Floor sticker - Floor Graphic Protect | 104 / 140 cm | 270 gsm | |
| 15 |  |
Vertical [P1] sticker (w/o glue) (Clear / Matt) | 152 cm | 100 gsm | |
| 16 |  |
Reflective sticker | 122 cm | 100 gsm | |
| 17 |  |

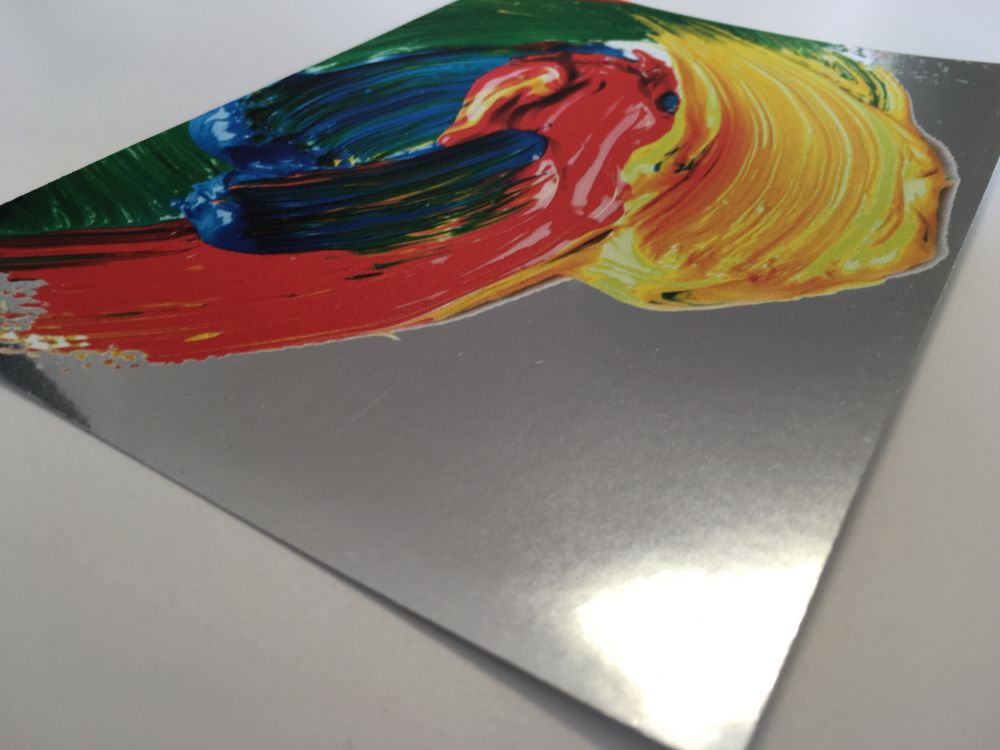

Mirror sticker | 122 cm | 100 gsm | |
| 18 |  |
Economy sticker matt, gloss, clear, blockout | 105 / 137 / 160 cm | 100 gsm | |
| 19 |  |
Grafiprint Cast sticker with laminate (for full car body wrapping) | 1.37 / 152 cm | 120 gsm | |
| 20 |  |

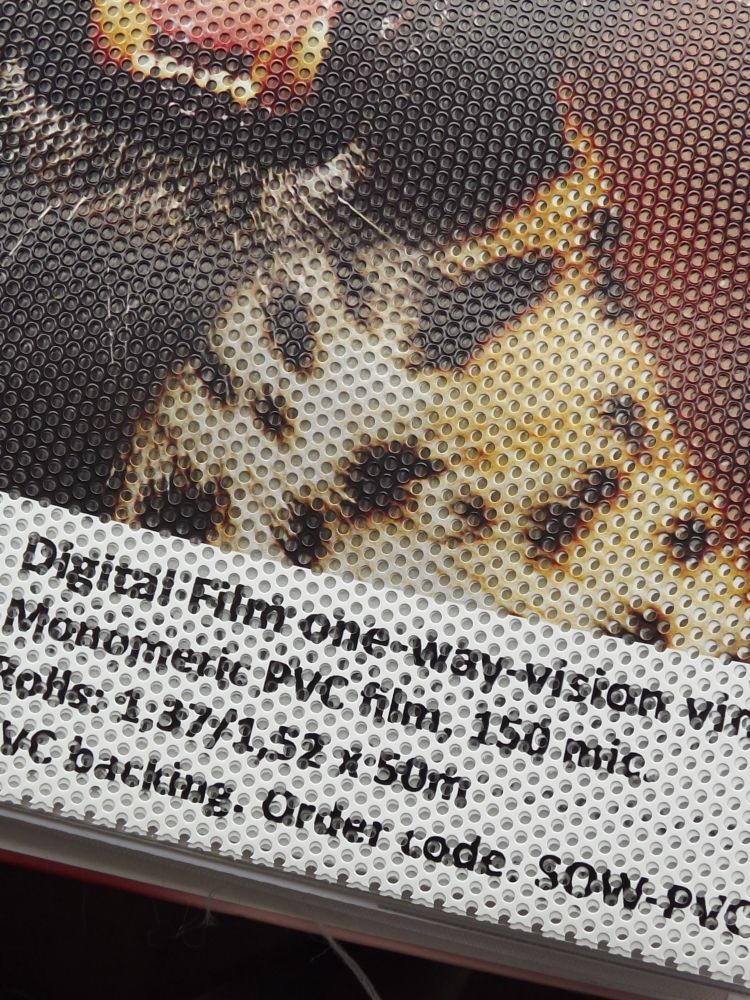

Perforated sticker - One way vision | 1.37 / 152 cm | 80 gsm | |
| 21 |  |
Paper 220 gr | 140 / 160 cm | 150 gsm | |
| 22 |  |
Laminated tent | 137 / 160 / 250 / 320 cm | 440 gsm | |
| 23 |  |
Cast tent | 160 / 320 cm | 480 gsm | |
| 24 |  |
Tent - Backlite | 160 / 320 cm | 500 gsm | |
| 25 |  |

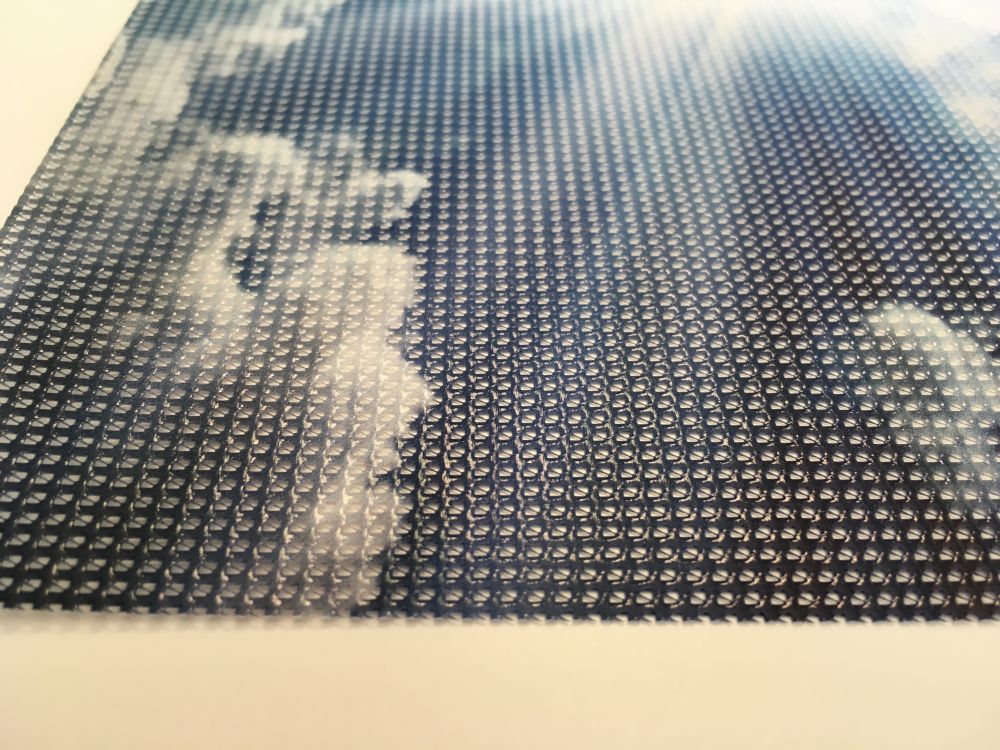

Mesh Tent | 160 / 320 cm | 370 gsm | |
| 26 |  |

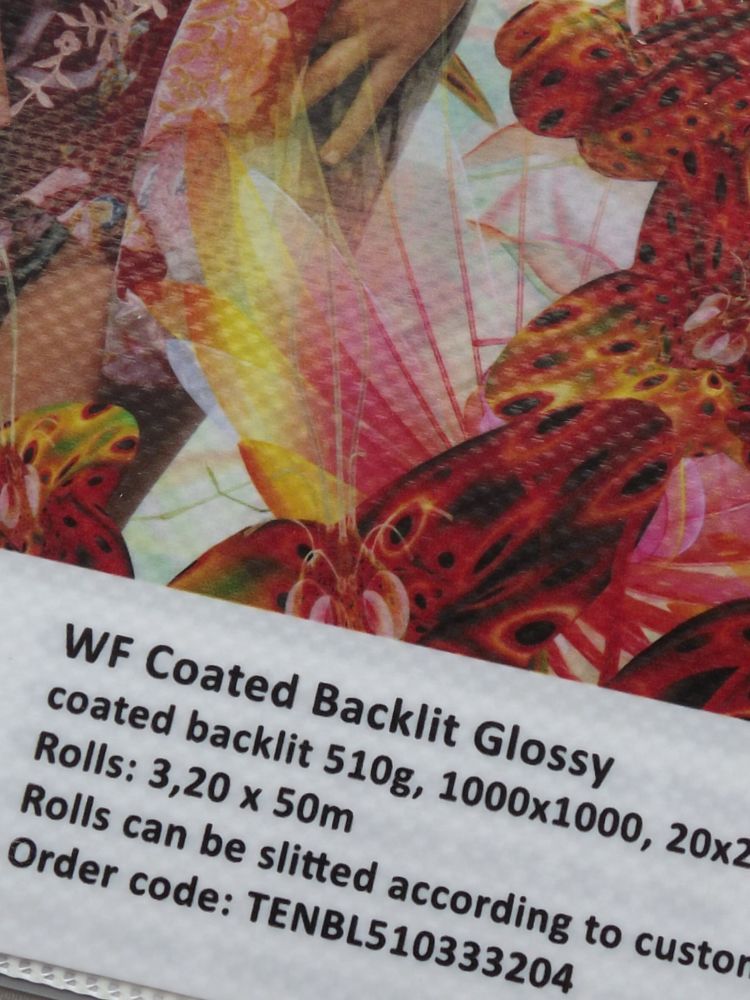

Backlit film | 1.07 / 137 / 152 cm | 210 gsm | |
| 27 |  |
Canvas (vernon ark) 350gsm | 137 / 160 cm | 350 gsm |
